Integration with ACP Observatory Control Software
SkyGuide / SkyGuard can be automatically launched, controlled and shutdown by ACP Observatory Control Software.
To realized the integration of SkyGuide / SkyGuard with ACP Observatory Control Software our API can be invoked from the ACP Startup & Shutdown scripts.
To provide you with some example, we wrote four samples scripts :
File name |
Description |
ACP-Startup.vbs |
ACP Startup script written in Visual Basic Script language |
ACP-Shutdown.vbs |
ACP Shutdown script written in Visual Basic Scripting language |
ACP-Startup.js |
ACP Startup script written in Java Script language |
ACP-Shutdown.js |
ACP Shutdown script written in Java Script language |
All the script samples are available in the SDK sub-folder of the zipped installation package.
All methods listed in the REST API References can be invoked with HTTP GET

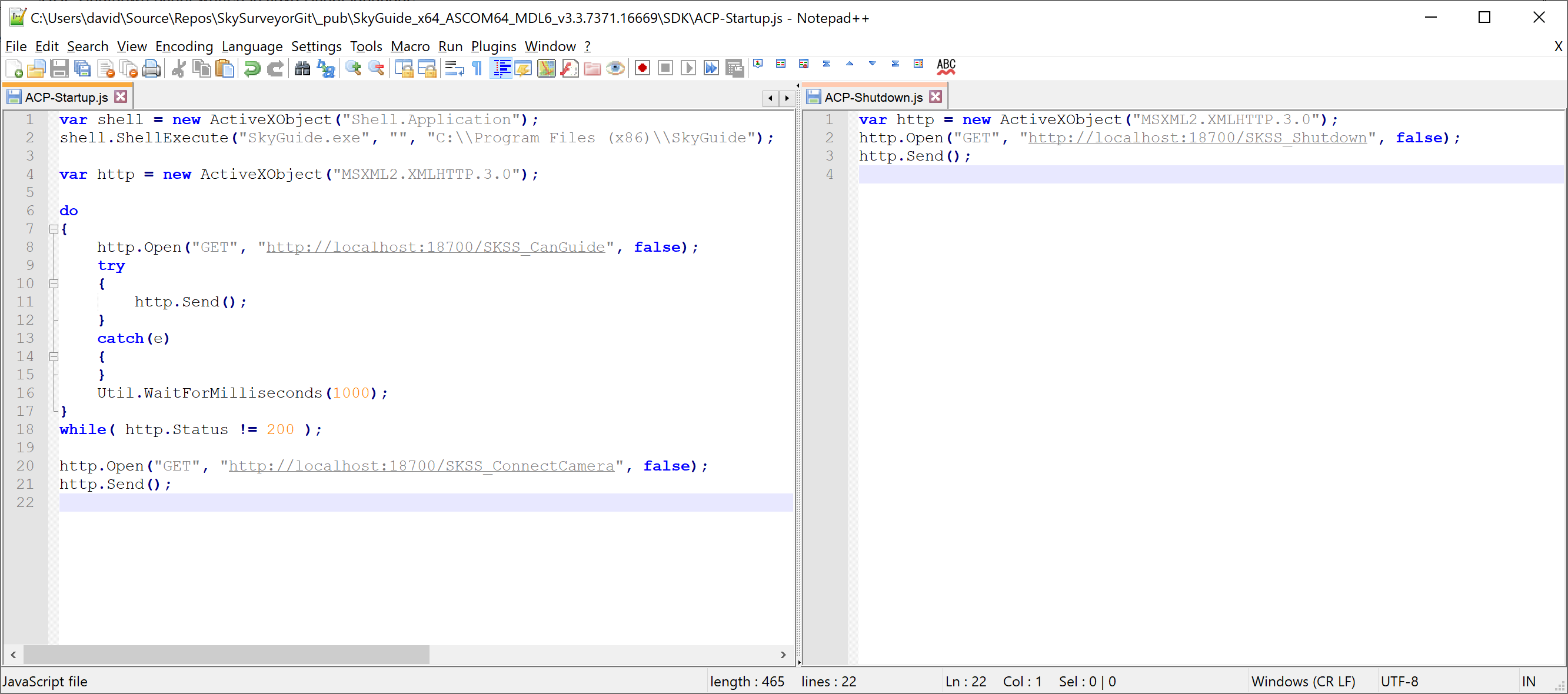

As an example, if you want to start guiding immediately after starting ACP, you can replace the SKSS_ConnectCamera with SKSS_StartGuiding method.
The above example, is configured to start SkyGuide, if you want to start SkyGuard just replace SkyGuide with SkyGuard in parameters of the ShellExecute method.
